Our best-selling charging station for business locations

Discontinued

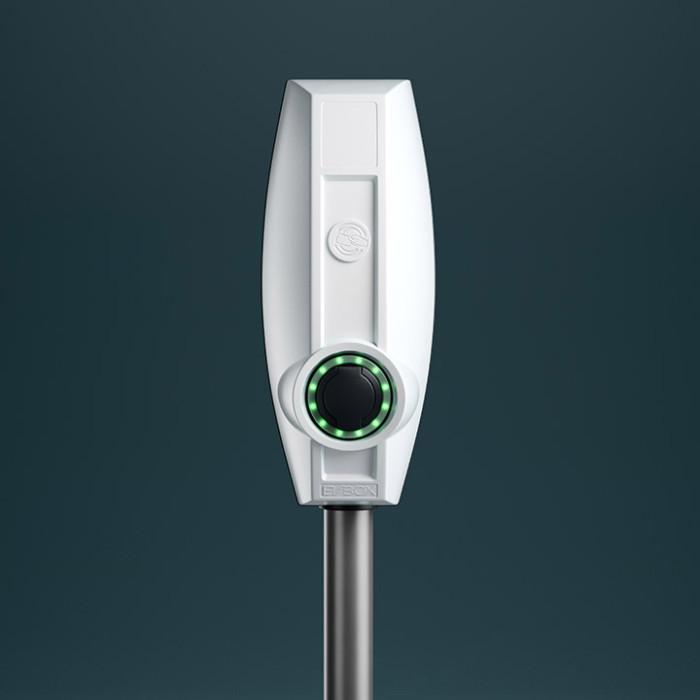

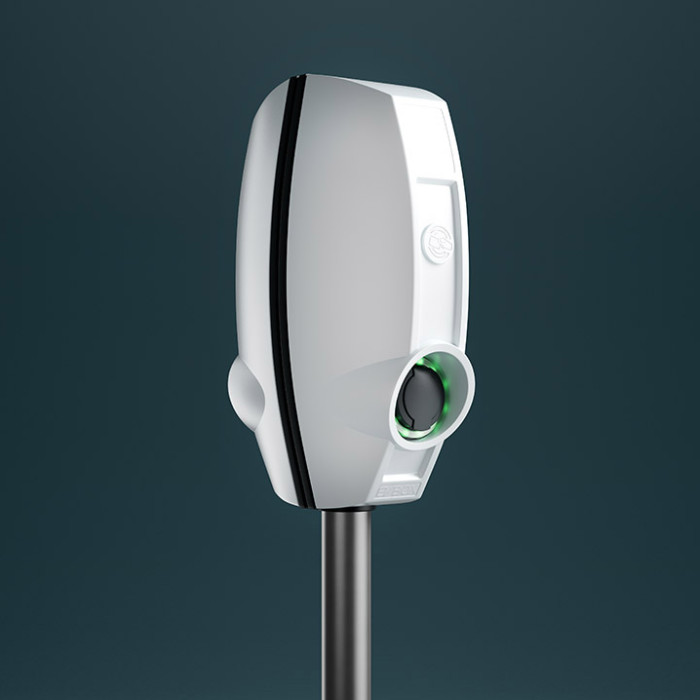

EVBox BusinessLine

Get support See key specs

Flexible to suit your business model

EVBox BusinessLine comes in three different power capacities: 7.4 kW, 11 kW, and 22 kW. You can also choose between a single or double socket variant, with or without a fixed cable.

Charging power

1 hour
charging time
1 hour
charging time
1 hour
charging time
40 km
driving range
60 km
driving range
120 km
driving range
  • 7.4
  • 11
  • 22
kW

Electrical properties

Charging capacity

7.4 kW / 11kW / 22 kW

Maximum output power

1-phase (32 A) or 3-phase (16 A or 32 A), 230V - 400V

Approx. charging times

Up to 120 km of range in one hour

Connector type

Type 2

Physical properties

Weight

10 kg (single socket) 12 kg (double socket)

Dimensions

600 x 255 x 205 mm (single socket) 600 x 255 x 410 mm (double socket)

Color

Dark grey (RAL 7016) or white (RAL 9016) or blue (RAL 5017)

Installation

Wall or pole mounted

Enclosure materials

Polycarbonate

Safety and certification

Certification

4th gen: CE compliant 3rd gen: CE compliant

Operating temperature range

4th gen: -25°C to +50°C 3rd gen: -25°C to +45°C

Enclosure ratings

IP45 / IK08

Metering

MID-certified meter

Connectivity

Communication standard

4th gen: 4G / 3G / 2G, WiFi, Bluetooth 3rd gen: 3G / 2G

Activation

RFID / QR code / Autostart

Communication protocol

OCPP 1.5 S, 1.6 S and 1.6 J

Other options

Hub or Satellite station
