The top-rated home charging station

Discontinued

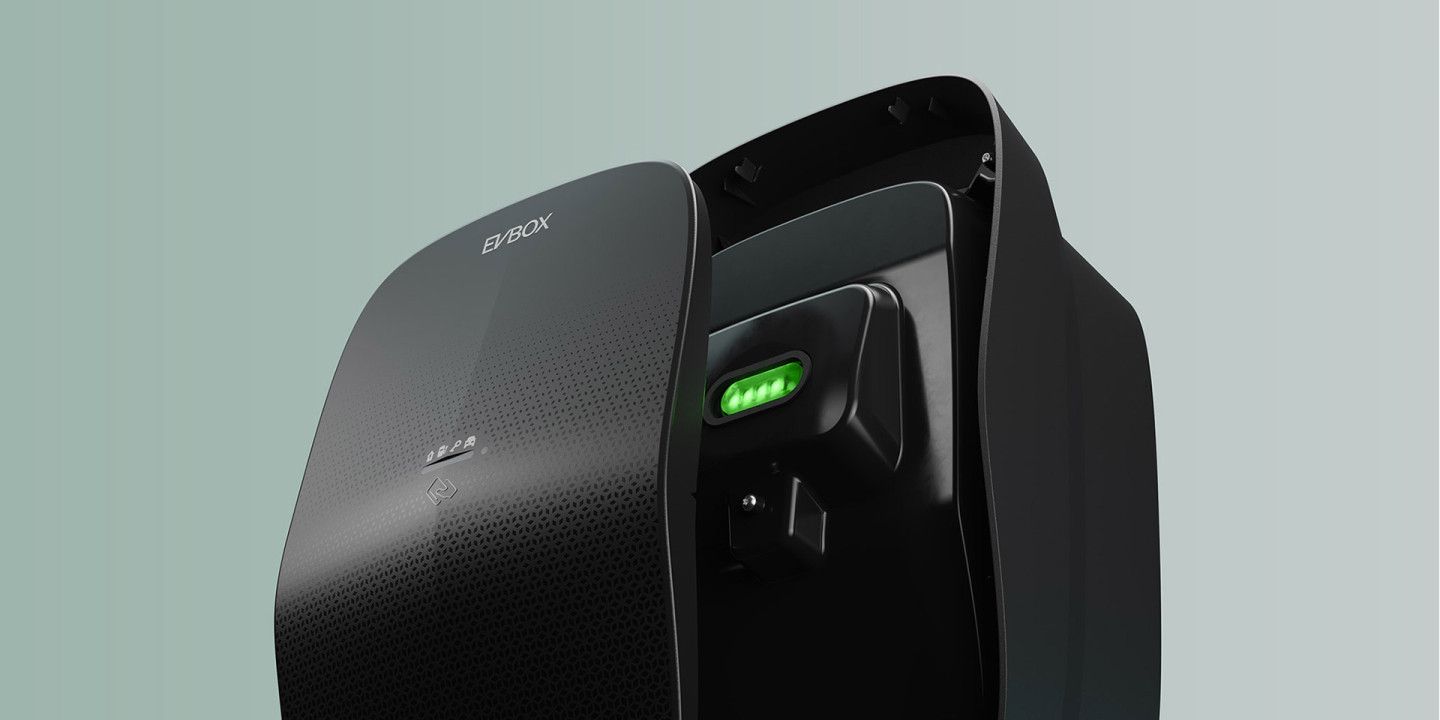

EVBox Livo

Get support See key specs

EVBox Solar Charging​

By using EVBox Dynamic Load Balancing kit alongside EVBox Livo 2, you can easily charge with solar power via our app to save on your energy bill.

  • Utilize your surplus energy​ to the max​
  • Three charging modes to pick from: Full power, Hybrid & Full Solar
  • Save on your energy bill, and maximize your savings​

EVBox Dynamic Load Balancing

Optimize your power consumption

EVBox’s Dynamic Load Balancing kit safely adjusts the power between your charger and other home appliances to prevent energy spikes and enable solar EV charging.

Learn more

Choose the solar charging method that best suits your needs.

Smart Energy Management Integration

Solar charging via a third-party home energy management system.

Use case

Homes looking to optimize multiple large energy loads (e.g. additional heat pump, air-conditioning, or a stationary battery) and with an existing EEBUS-ready EMS solution installed.​

Compatible with

EVBox Livo and EVBox Livo 2

EVBox Solar Charging

Solar charging with EVBox Dynamic Load Balancing kit and our app​.

Use case

Homes with a smaller energy load (e.g. solar panels and an EV) that want to optimize the EV charging process only.​

Compatible with

EVBox Livo 2

Smart Energy Management Integration

By integrating EVBox Livo or EVBox Livo 2 with a home energy management system and solar panels, you can charge your vehicle with clean energy.​

Charging your EV at home can double your energy bill. With Smart Energy Integration, you can avoid paying to send excess solar back to the grid. ​

Homeowners can take control of their electricity consumption by integrating electric mobility with solar panels, battery storage, and heat pumps.​

With Smart Energy Integration, homeowners can lower their electricity needs from the grid and reduce their household's carbon footprint.​

Choose between flexible configurations

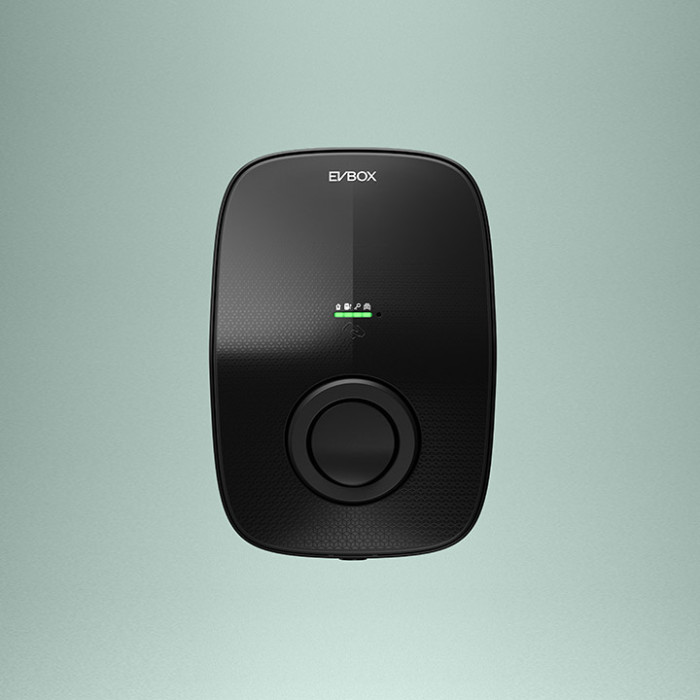

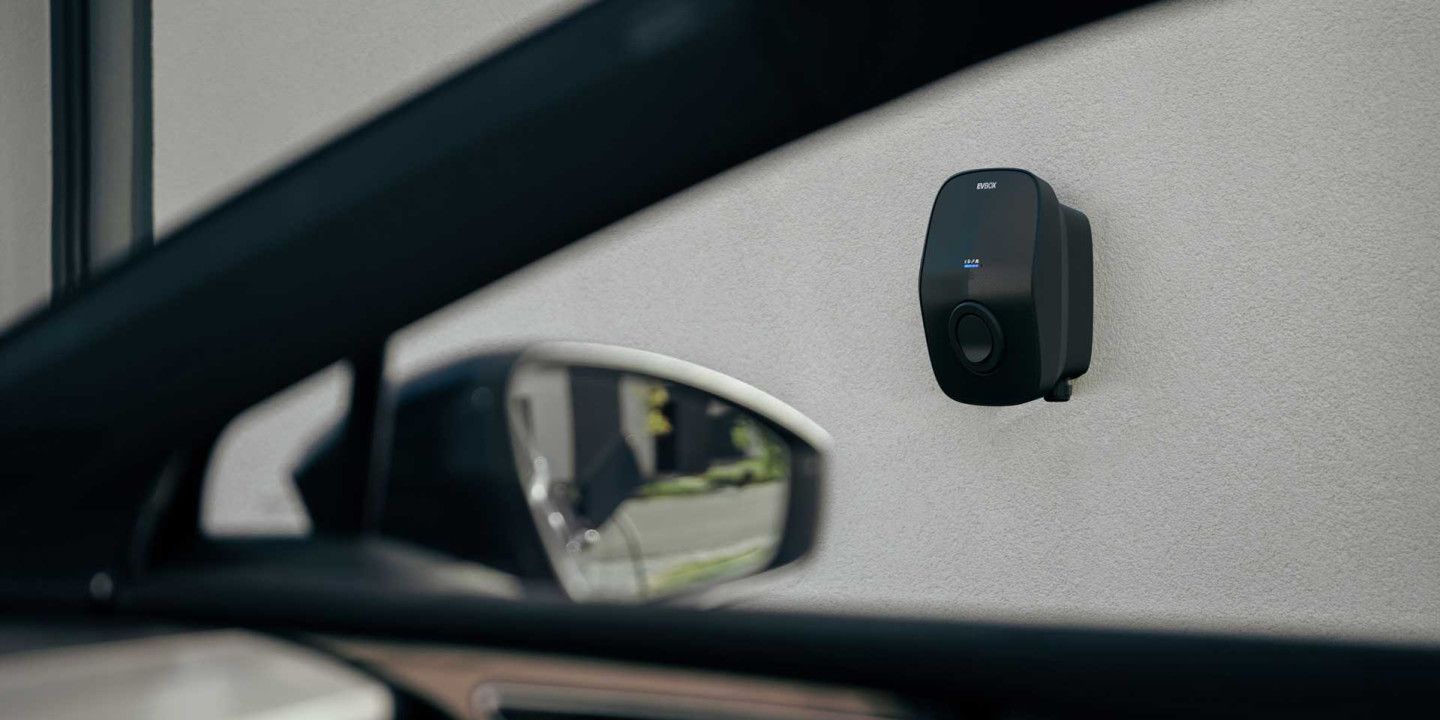

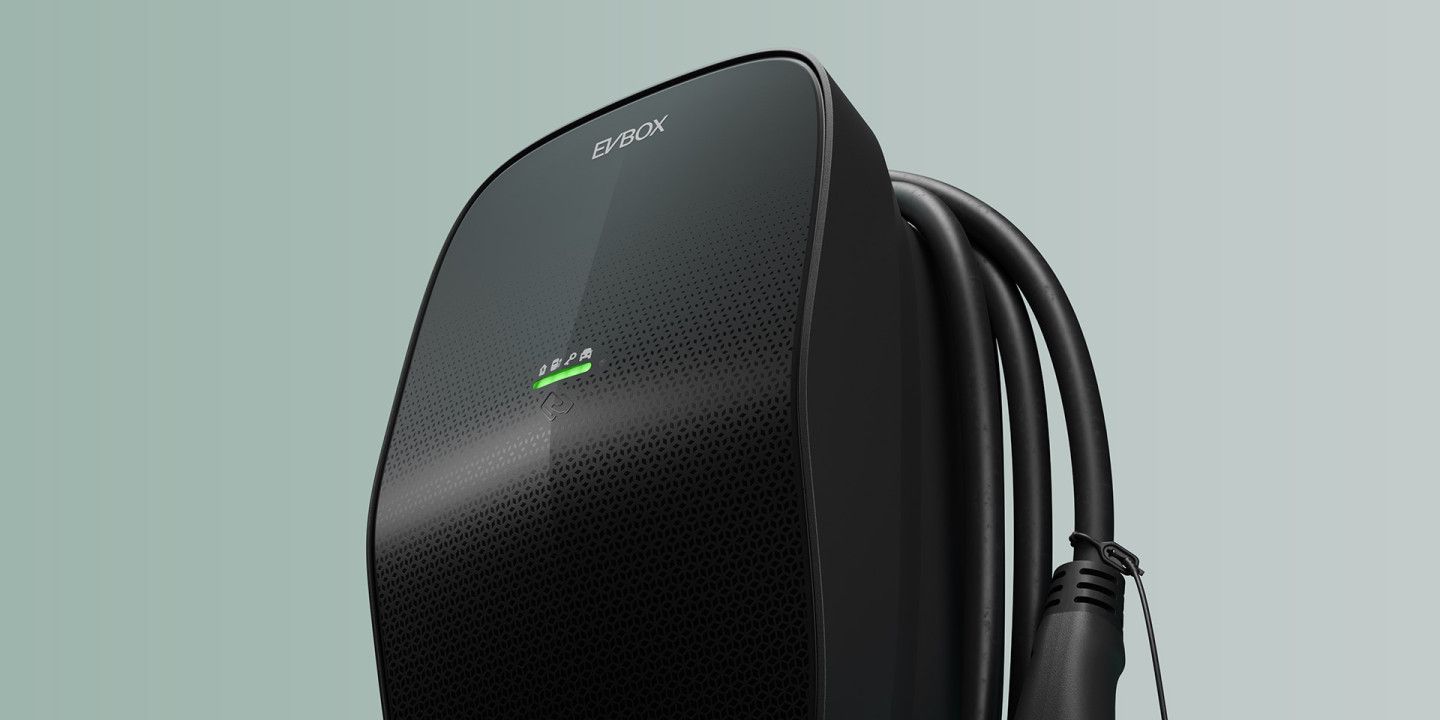

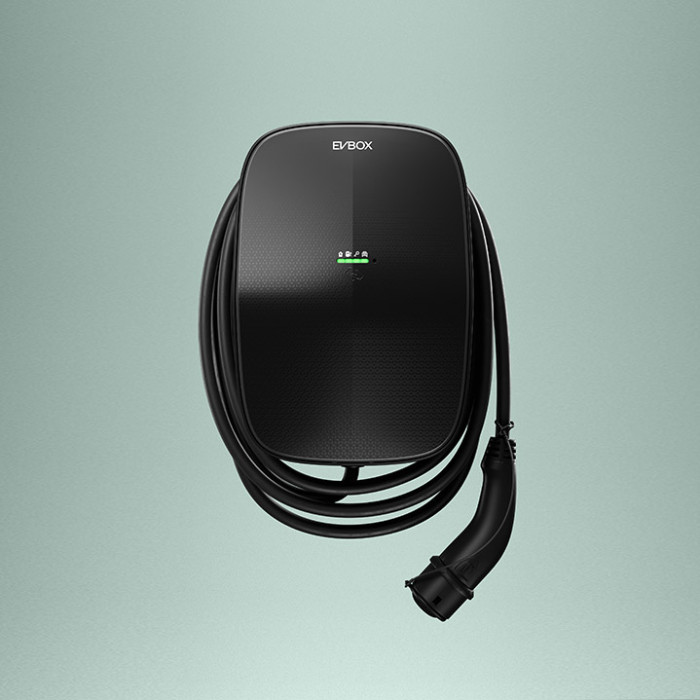

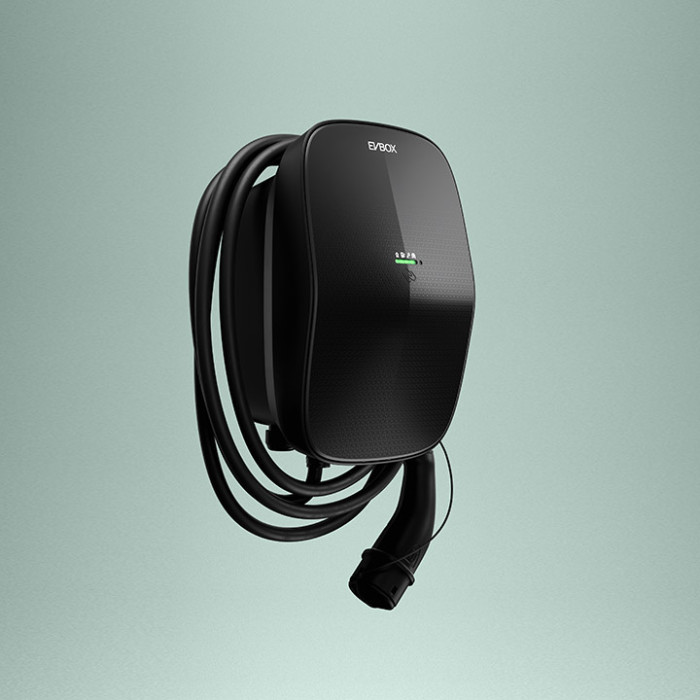

EVBox Livo comes in three different power capacities: 7.4 kW, 11 kW, and 22 kW. You can also choose between having a fixed cable or socket only.

Charging power

1 hour
charging time
1 hour
charging time
1 hour
charging time
40 km
driving range
60 km
driving range
120 km
driving range
  • 7.4
  • 11
  • 22
kW

Electrical properties

Charging capacity

7.4 kW / 11kW / 22 kW

Maximum output power

Selectable 1-phase or 3-phase, 230–400V, 16 A and 32 A

Approx. charging times

Up to 120 km of range in one hour

Connector type

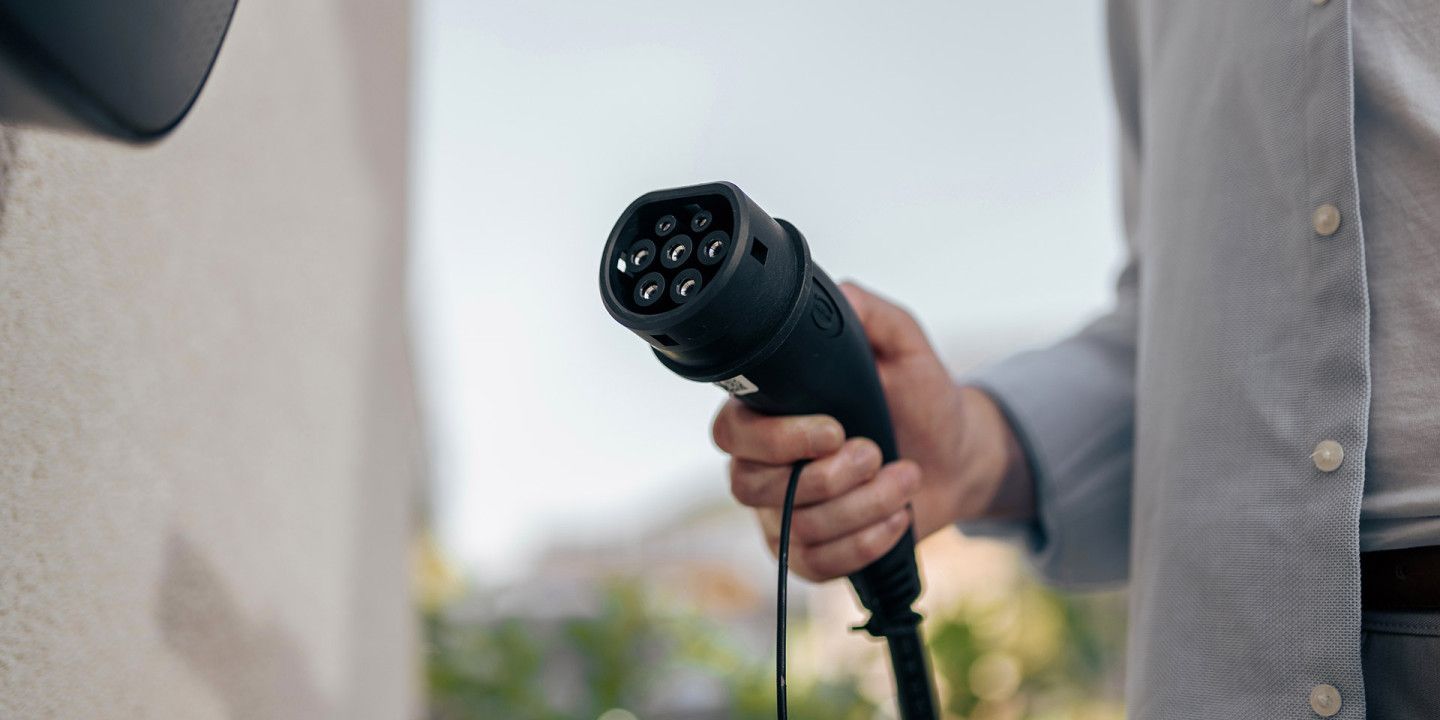

Type 2

Physical properties

Weight

5.8 kg (fixed cable) 3.7 kg (socket only)

Dimensions

250 x 366 x 176 mm

Color

Black

Cable reach

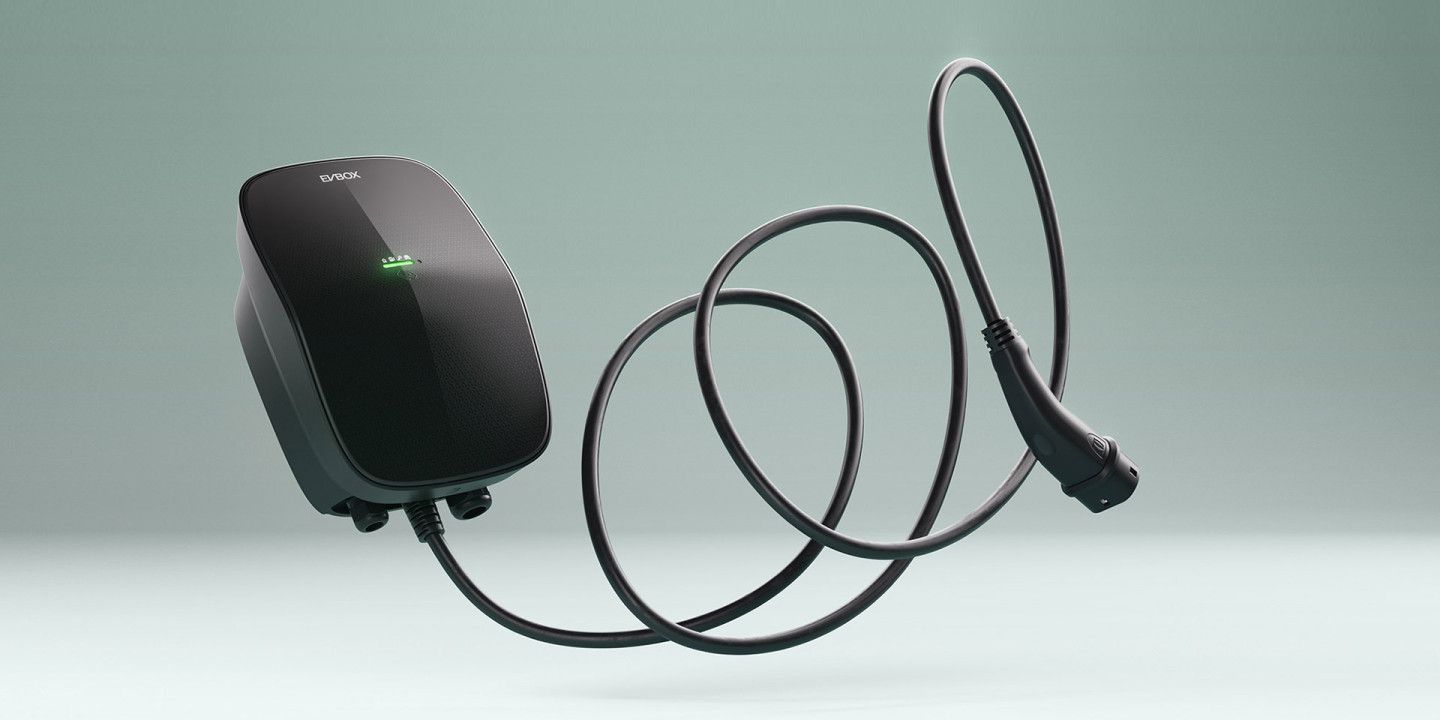

6 m (fixed cable)

Installation

Flat surface and pole mounting

Enclosure materials

Low-carbon Polycarbonate Makrolon RE®

User interface

4 LED indicator lights, buzzer, light sensor

Safety and certification

Certification

DEKRA Certified CE compliant

Operating temperature range

-30°C to +50°C

Enclosure ratings

IP55 / IK10

Metering

Class A accuracy ±2 % According to EN 50470-3

Connectivity

Communication standard

Wi-Fi, LTE-M (4G), Ethernet

Activation

RFID / Autostart / App

Dynamic load balancing

EVBox Dynamic Load Balancing kit

Solar charging solution

Smart Energy management integration or EVBox solar charging

Cluster load balancing

​Up to 100 connectors​

Communication protocol

OCPP 2.0.1

Communication with vehicle

IEC 61851-1, ISO 15118 (hardware ready)

Cybersecurity

Built-in Trusted Platform Module (TPM)
