EVBox Elvi comes with an optional MID-certified meter for employee reimbursement. It's available in three different power capacities: 7.4 kW, 11 kW, and 22 kW. You can also choose between a fixed cable or socket only.
Charging capacity
7.4 kW / 11kW / 22 kW
Maximum output power
Selectable 1-phase or 3-phase, 230–400V, 16 A and 32 A
Approx. charging times
Up to 120 km of range in one hour
Connector type
Type 2 (fixed cable)
Weight
7 kg (fixed cable) 3 kg (socket)
Dimensions
186 x 328 x 161 mm (fixed cable) 186 x 328 x 219 mm (socket)
Colors
Misty black (RAL 7021) or polar white (RAL 9003)
Cable reach
6 m (fixed cable)
Installation

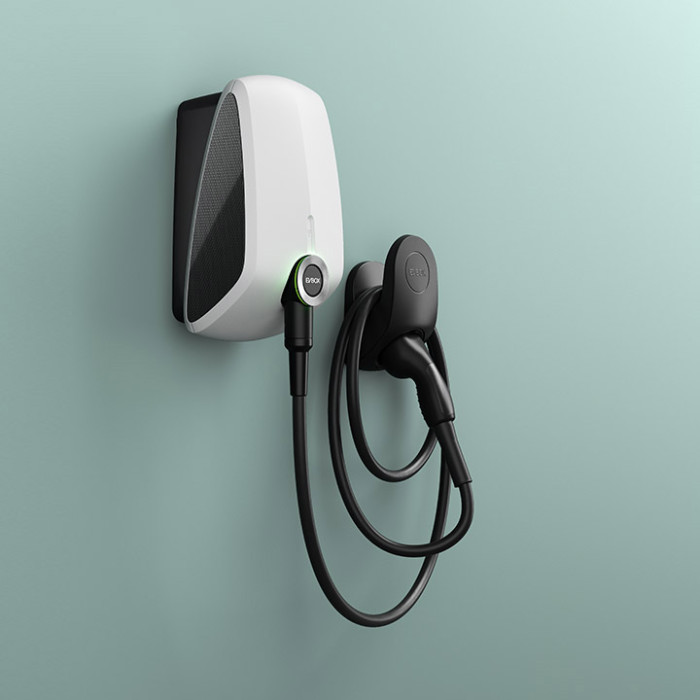

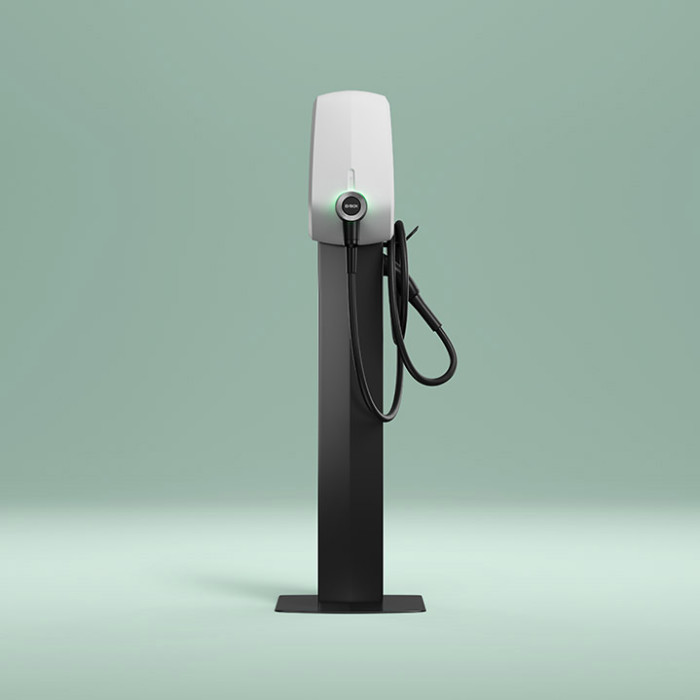

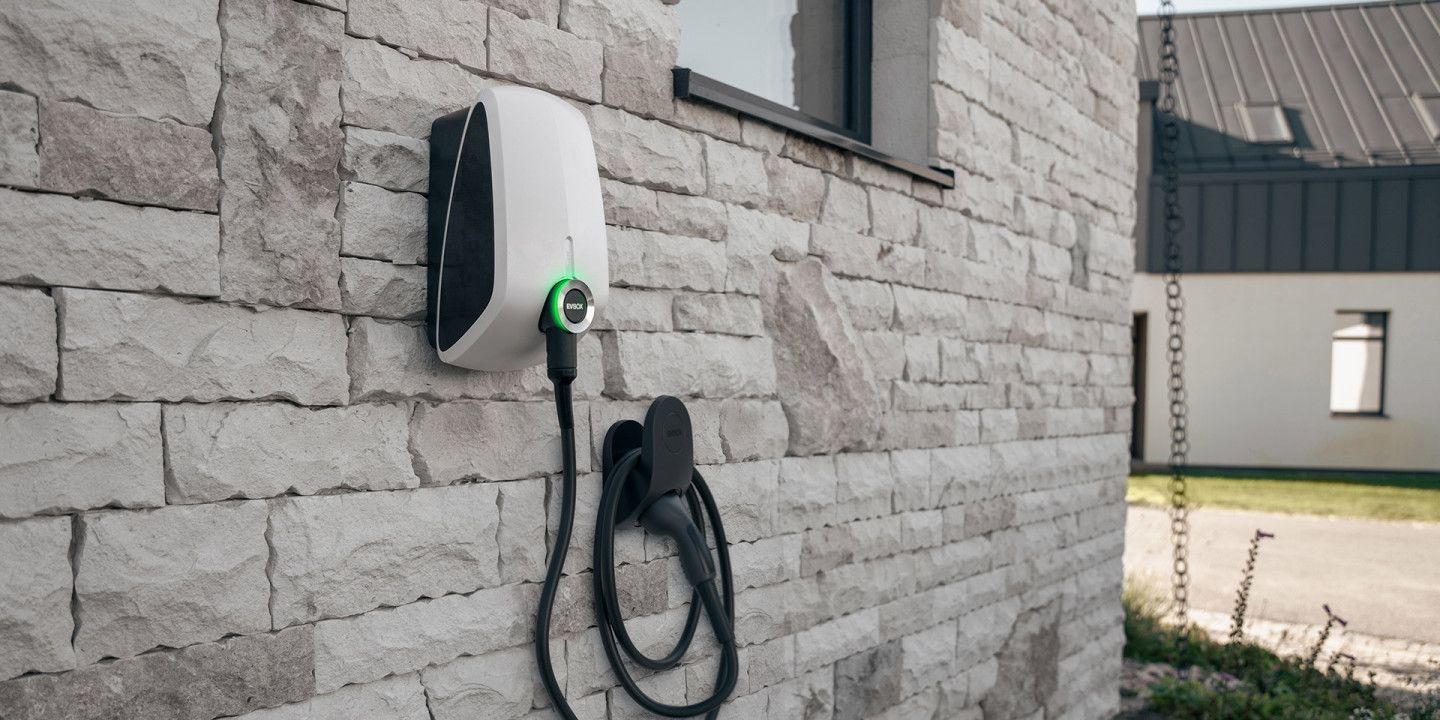

Wall or pole-mounted, optional cable dock
Enclosure materials
Polycarbonate
Certification
CE and UL-compliant versions
Operating temperature range
-25°C to +45°C
Enclosure ratings
IP55 / IK10
Metering
Optional MID-certified kWh meter
Communication standard
Wi-Fi, Bluetooth, or UMTS (3G) or 4G LTE
Activation
RFID / Autostart
Communication protocol
OCPP 1.5 S and 1.6 J
