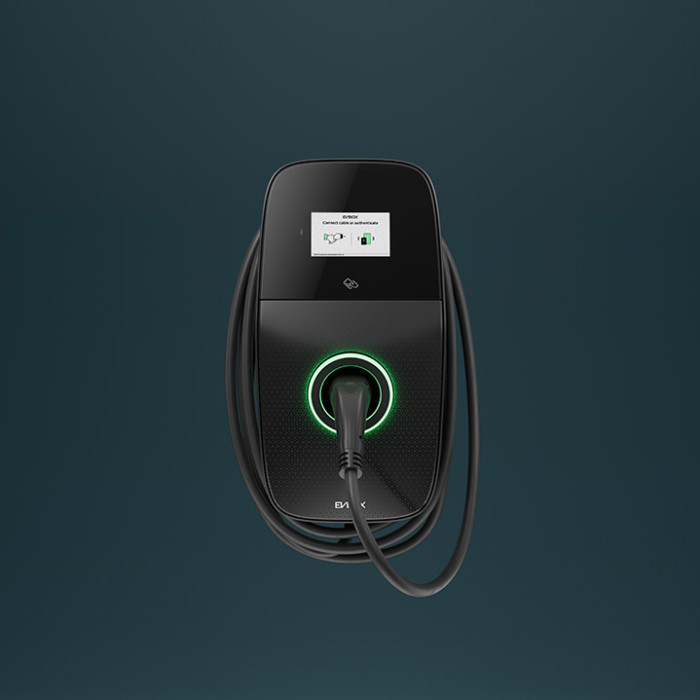

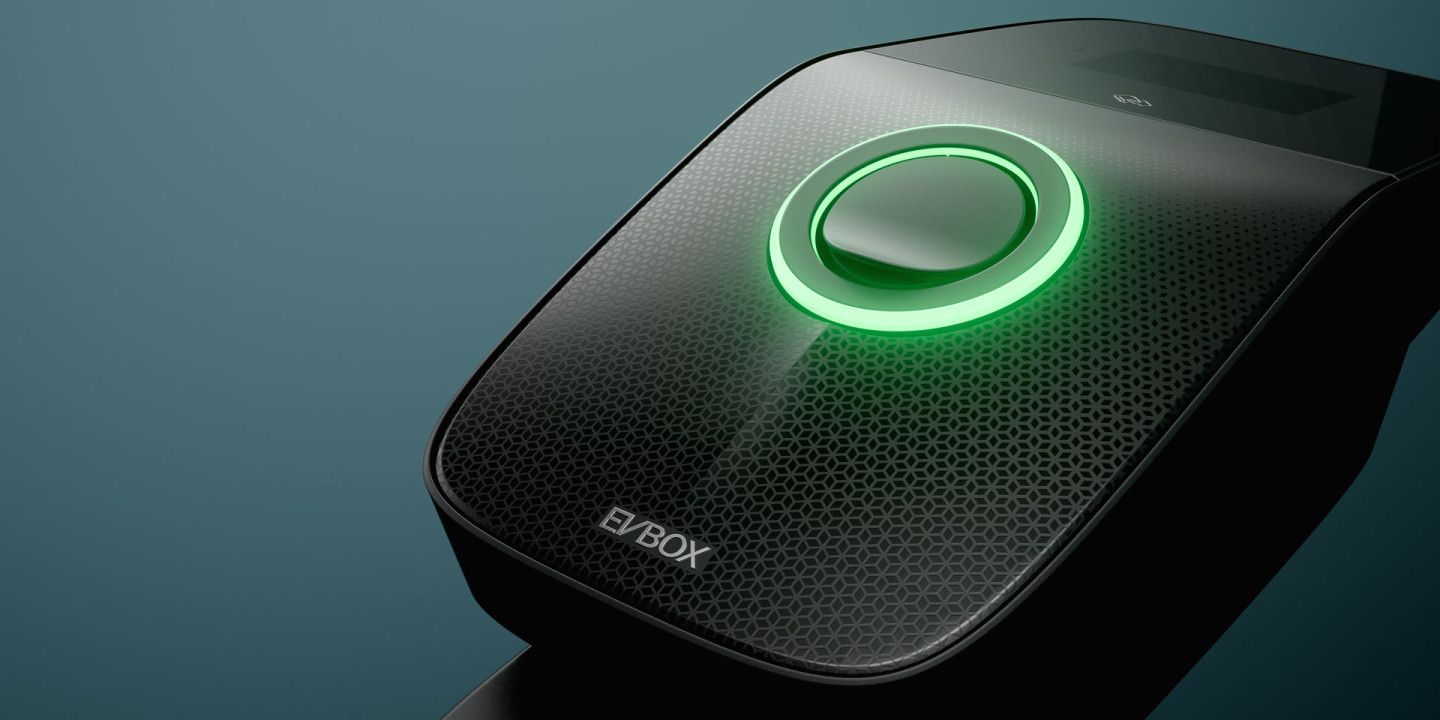

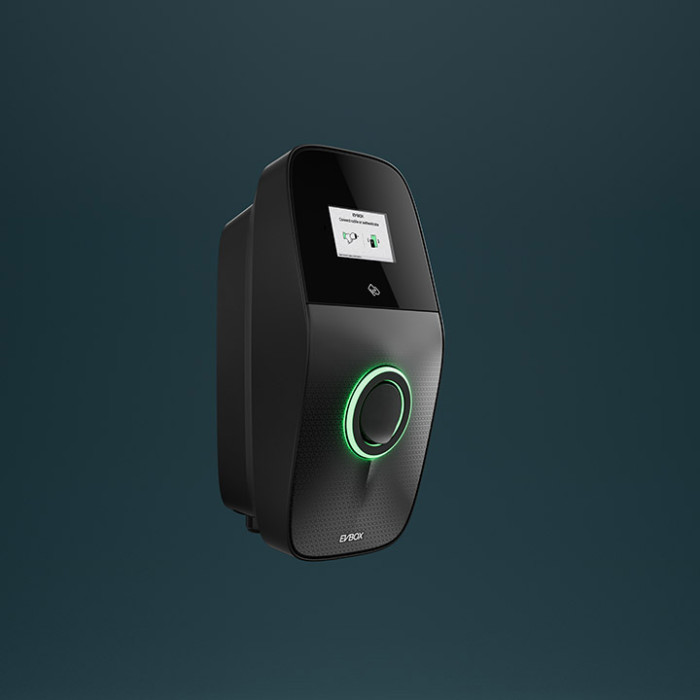

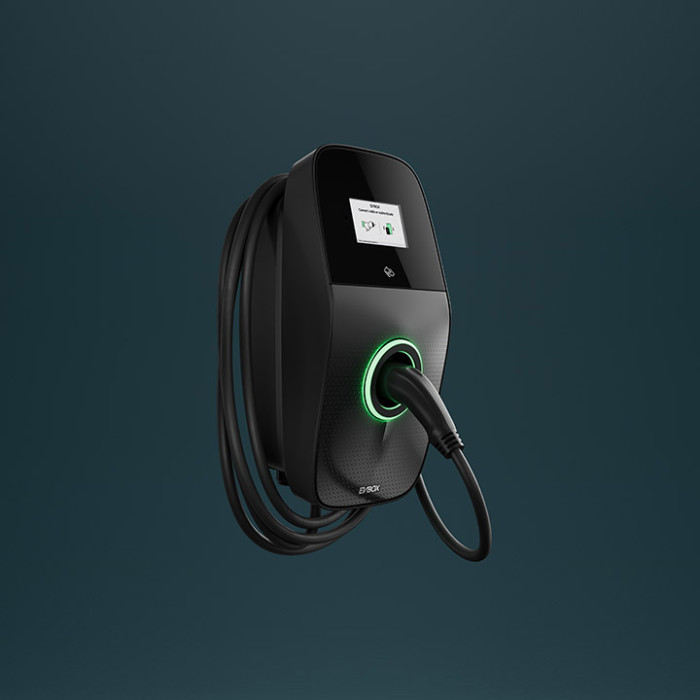

EVBox Liviqo

Get support See key specs

Flexible to suit your business model

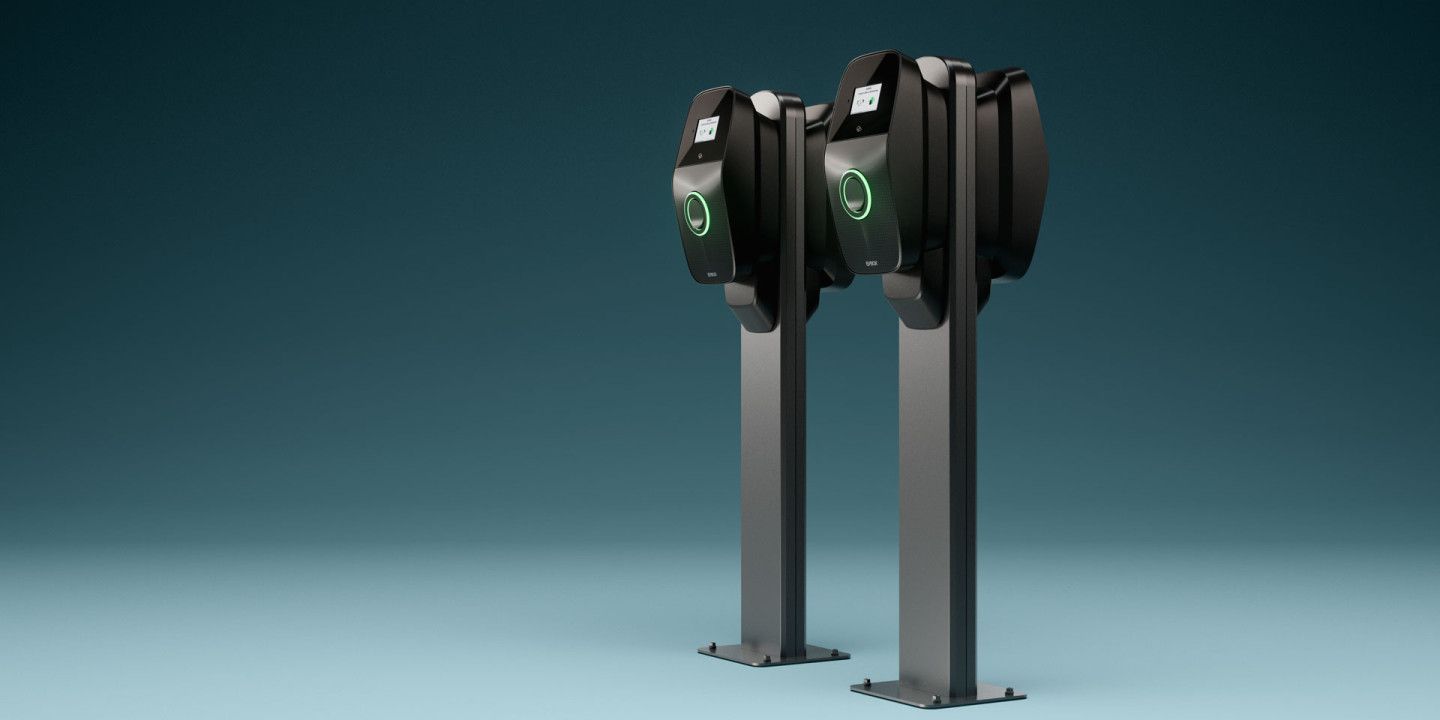

EVBox Liviqo is available in three power outputs: 7.4 kW, 11 kW, and 22 kW. It comes with a fixed cable or a socket and can be wall- or pole-mounted for space-saving convenience.

Charging power

1 hour
charging time
1 hour
charging time
1 hour
charging time
40 km
driving range
60 km
driving range
120 km
driving range
  • 7.4
  • 11
  • 22
kW

Electrical properties

Charging capacity

7.4 kW / 11kW / 22 kW

Maximum output power

1 or 3-phase, 230 – 400 V, 6 to 32 A (configurable)

Approx. charging times

Up to 120 km of range in one hour

Connector type

Type 2

Physical properties

Weight

9.1 kg (fixed cable) / 6.5 kg (socket)

Dimensions

256 x 508 x 205 mm

Color

Black

Cable reach

6 m (fixed cable)

Installation

Flat surface

Enclosure materials

Low-carbon Polycarbonate Makrolon RE®

Interfaces

Display

5” 480 x 800 LCD display

User interface

LED ring, Buzzer, Light & Proximity sensor

Safety and certification

Certification

DEKRA Certified
CE compliant

Operating temperature range

-30°C to +50°C

Enclosure ratings

IP55 / IK10

Metering

MID-certified meter

Connectivity

Communication standard

Ethernet, Wi-Fi, LTE-M (4G)

Activation

RFID / Fob / App

Dynamic load balancing

EVBox Dynamic Load Balancing kit

Cluster load balancing

Logic integrated (Up to 100 Connectors)

Communication protocol

OCPP 2.0.1

Communication with vehicle

IEC 61851-1, ISO 15118 (hardware ready)

Cybersecurity

Built-in Trusted Platform Module (TPM)
